Hydrogen Sulfide Sensor (BARC)

Being an eminent company in this business, we are involved in presenting an enormous quality range of Hydrogen Sulfide Sensor. This Hydrogen Sulfide Sensor is used for the detection of presence of hydrogen sulfide. In addition, these products are available as per the requirements of our clients.

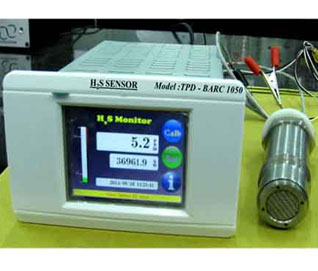

Hydrogen Sulfide sensor can be used for H2S detection at industries (Ex. Heavy Water Plant, Sewage Treatment Plants, Oil and Gas, Pulp and Paper) as well as chemical laboratories. We are providing Hydrogen Sulfide Sensor along with the Digital Monitor. Also have Technical Collaboration with BARC (Baba Atomic Research Center).




Easy calibration
Long life sensor
Excellent performance






S.No Specifications Details
1 Model TPD-BARC 1050
2 H2S Detection Range 10-50ppm
3 Operating Temperature 180±2˚C
4 Response Time (Time to reach 90% of the total resistance change) 3 - 5min
5 Recovery Time (Time to reach 10% of the total resistance change) ˜ 1 5min
6 Response at 50ppm H S (Rair/Rgas) >500

Selectivity for  H2S (in comparison to NO, C2H5OH, CO2, Cl2, SO2, H2  and NH3 etc.)

8 Life time under operating conditions >2years
9 Sensor Element Pt-100
10 Sensor Housing SS-304
11 Housing Diameter 28mm
12 Housing Length 100mm
